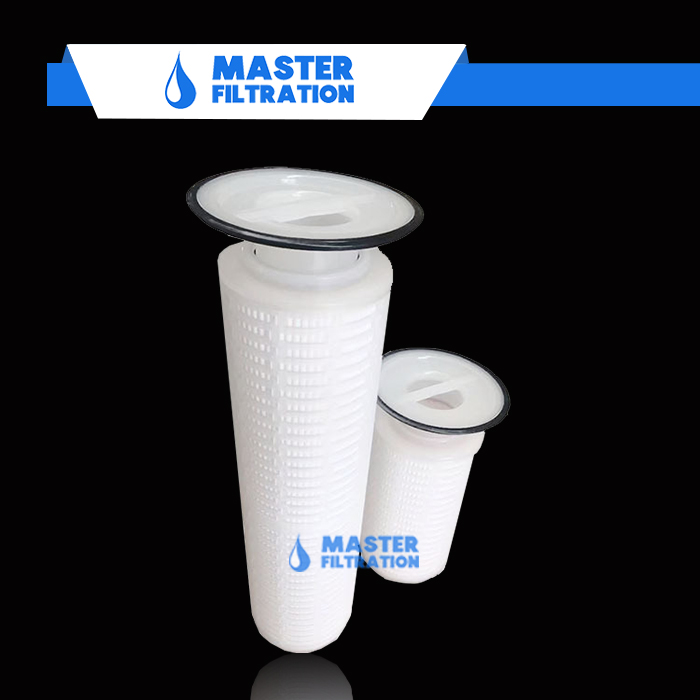

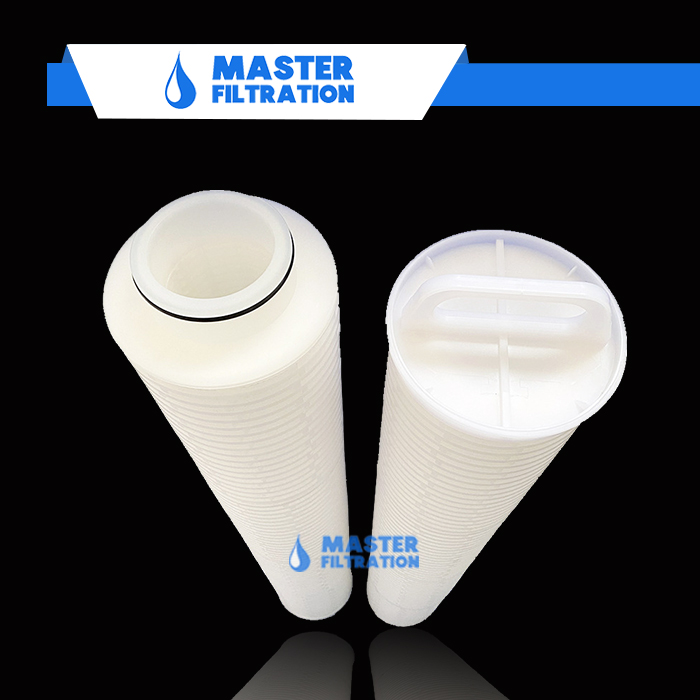

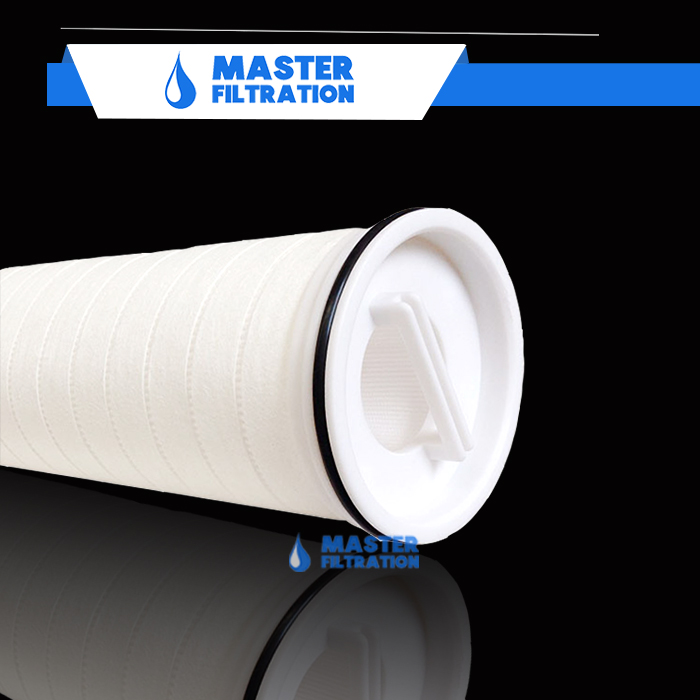

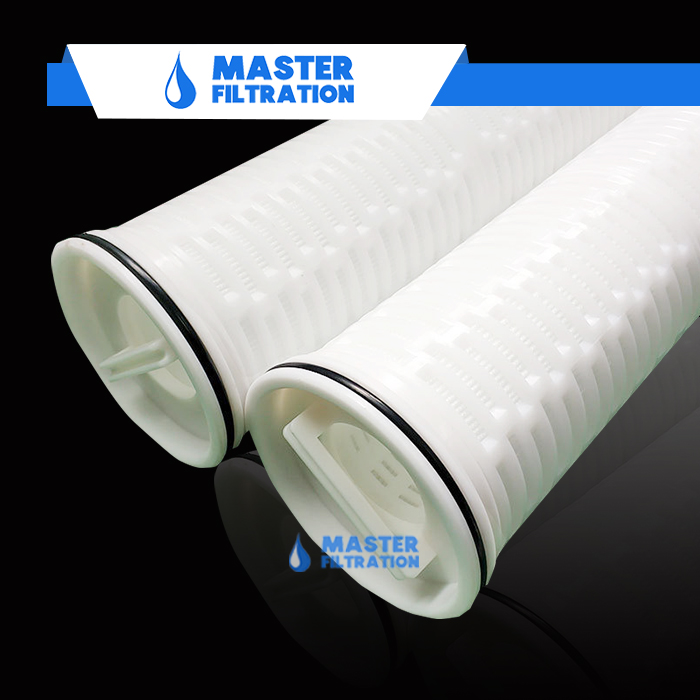

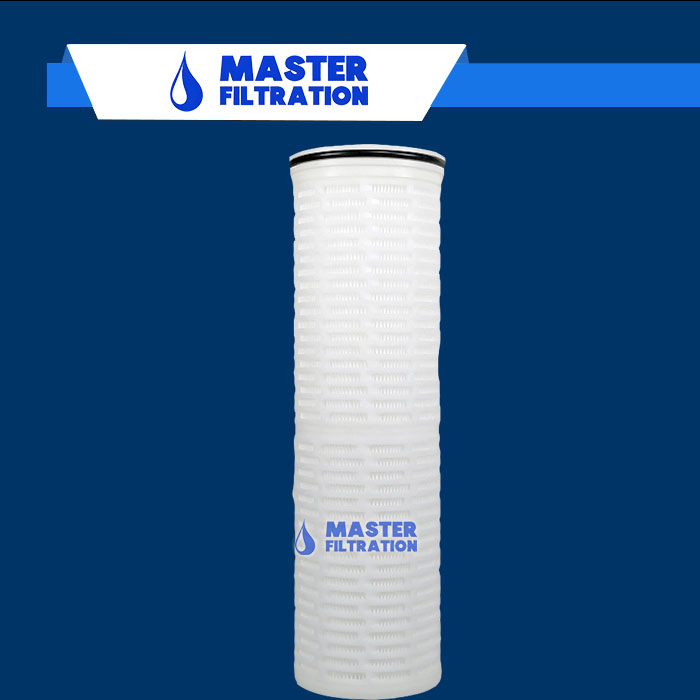

MFHO Series Bag-Type High Flow Pleated Filter Cartridge

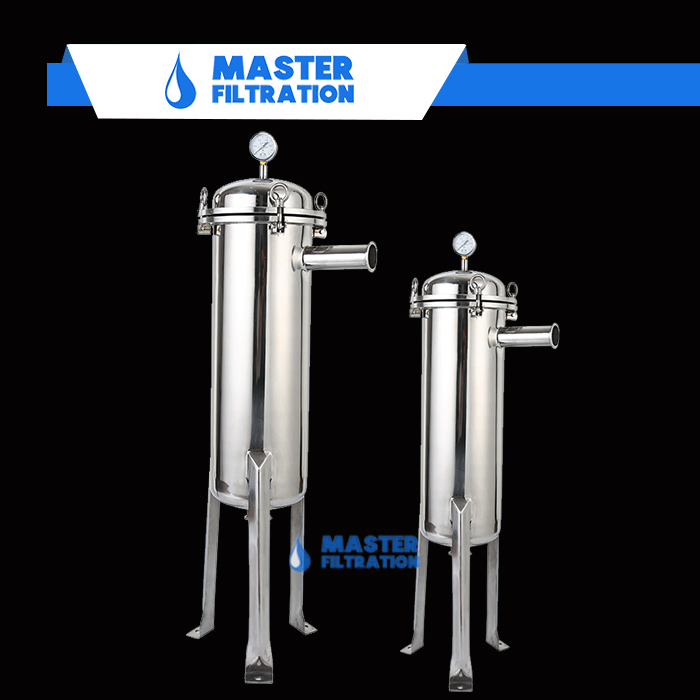

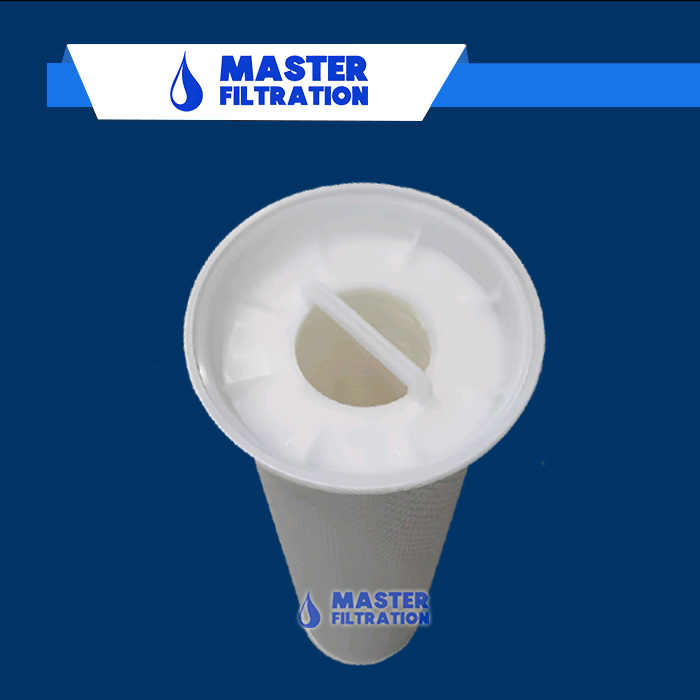

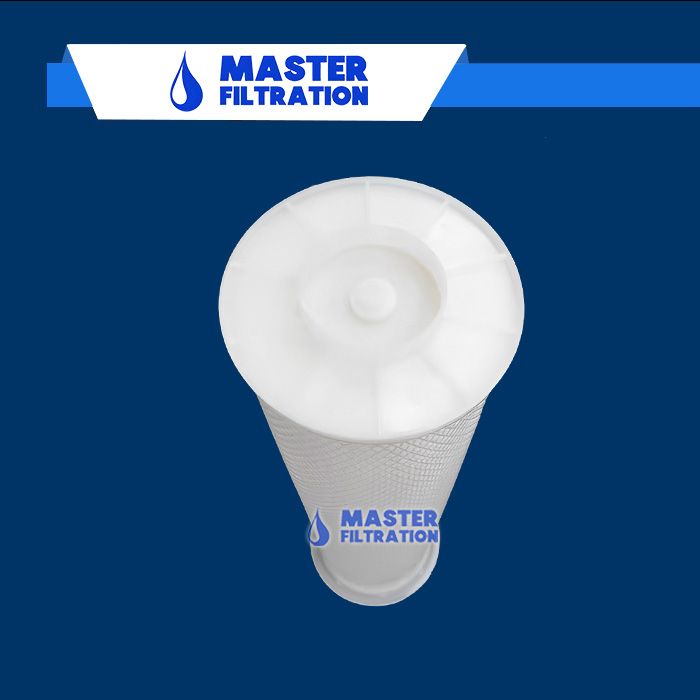

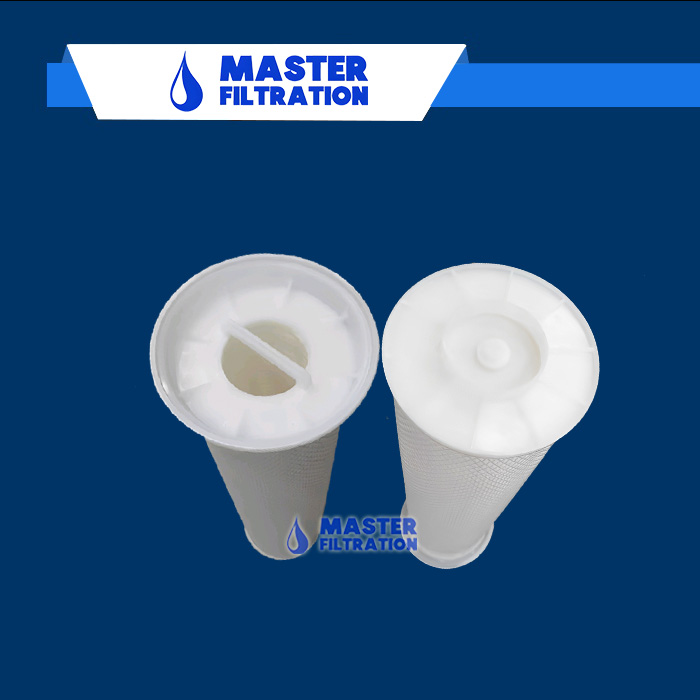

Bag-Type High Flow Pleated Filter Cartridge, adopts 6" (152mm) large diameter, bag type top end design for multi-bag filter housing, mainly used in air-conditioning condensate water filtration. Liquid flow direction from internal to external. Large diameter design increases effective filter area and reduce the number of filter filter cartridge.
- Gradient pore structure, surface and deep filtration combination
- Good contaminant and dust capacity
- Ultrasonic hot melting, no chemical glue
- Large filtration area, high flow ability
- PP inside support inforced frame

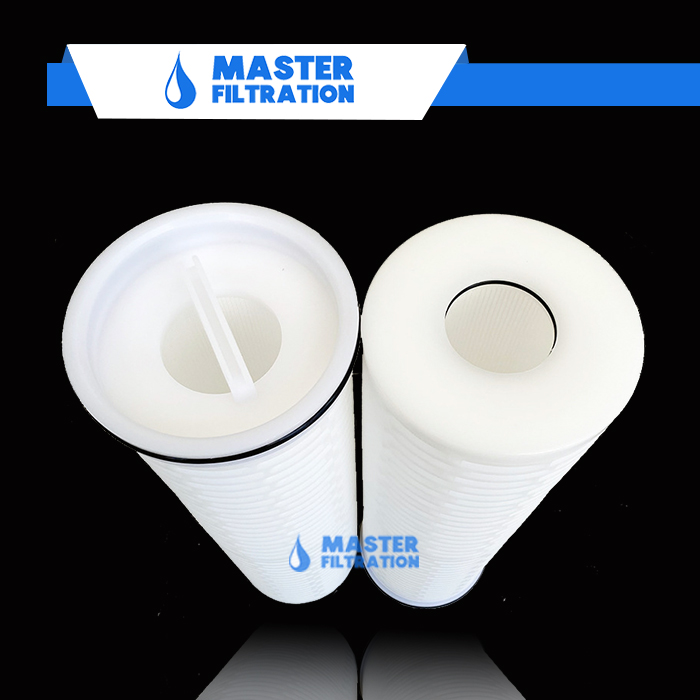

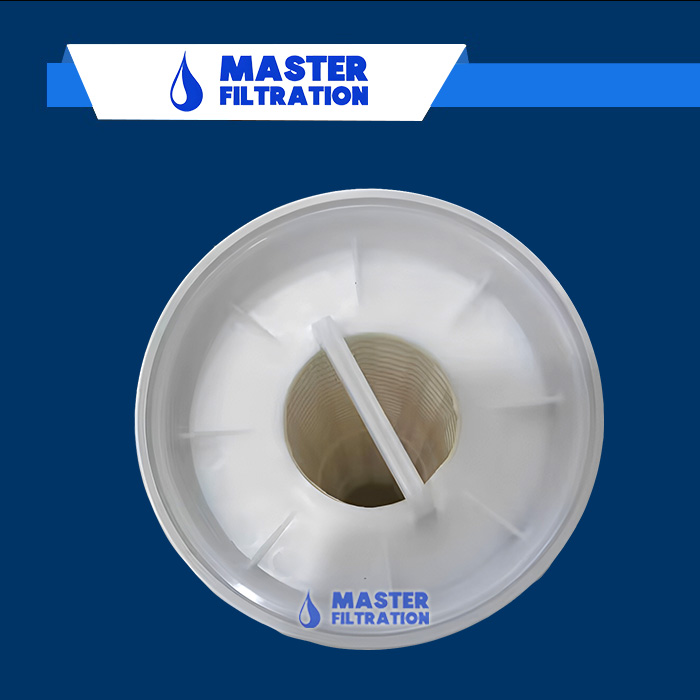

- Handle design, quick installation
- Multiple 0.5 μm to 100μ m precision and 20'' to 60'' length selectable
|

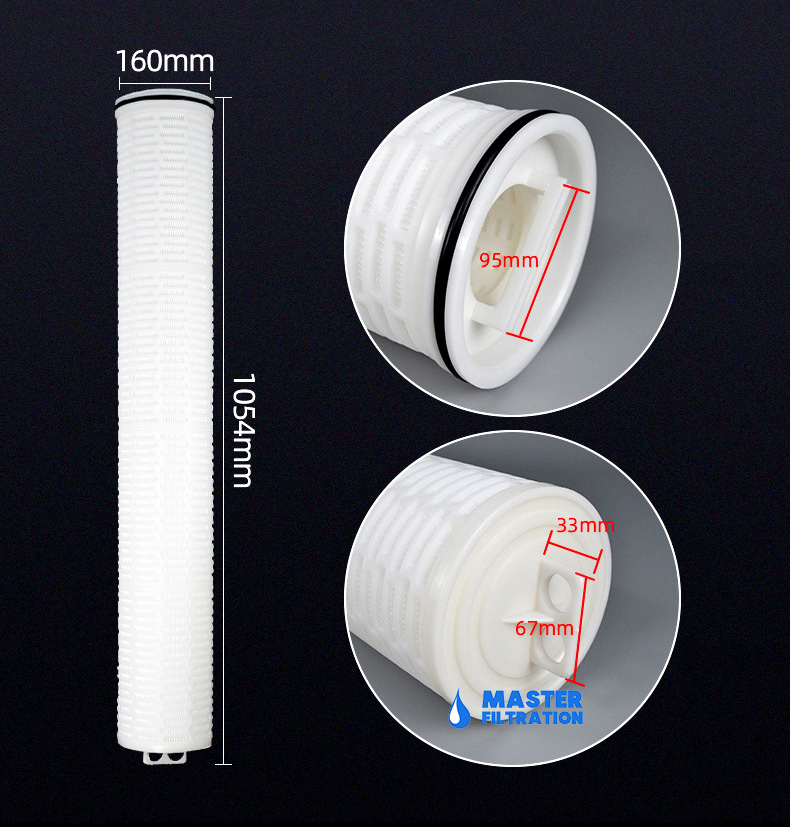

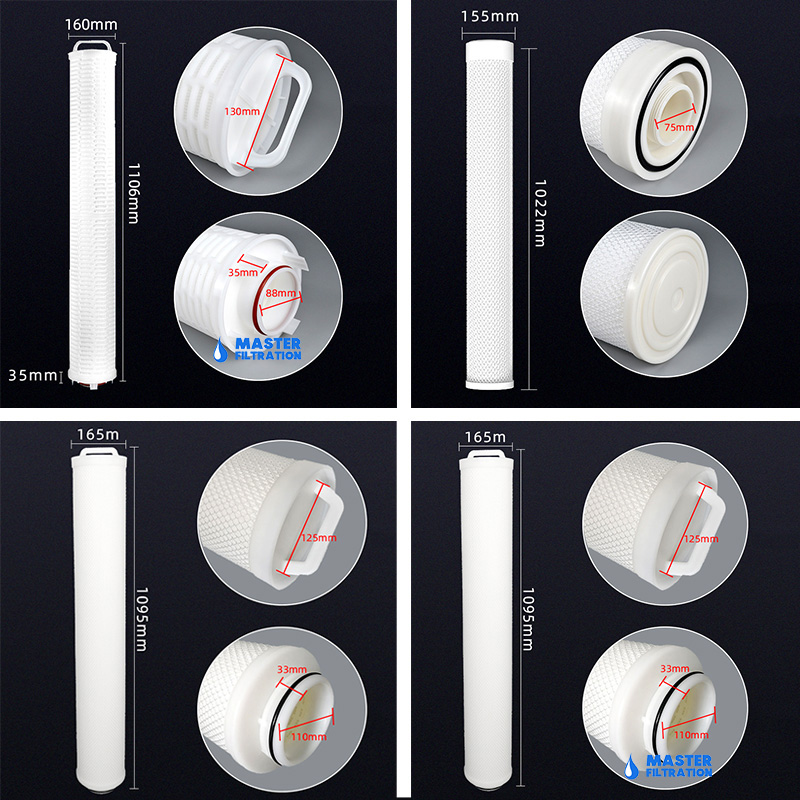

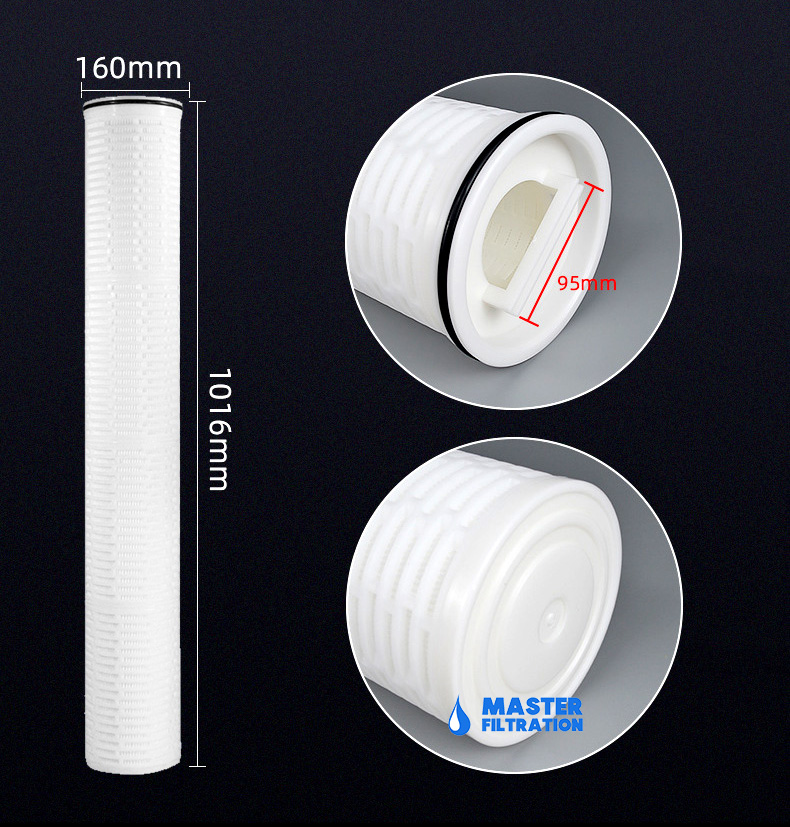

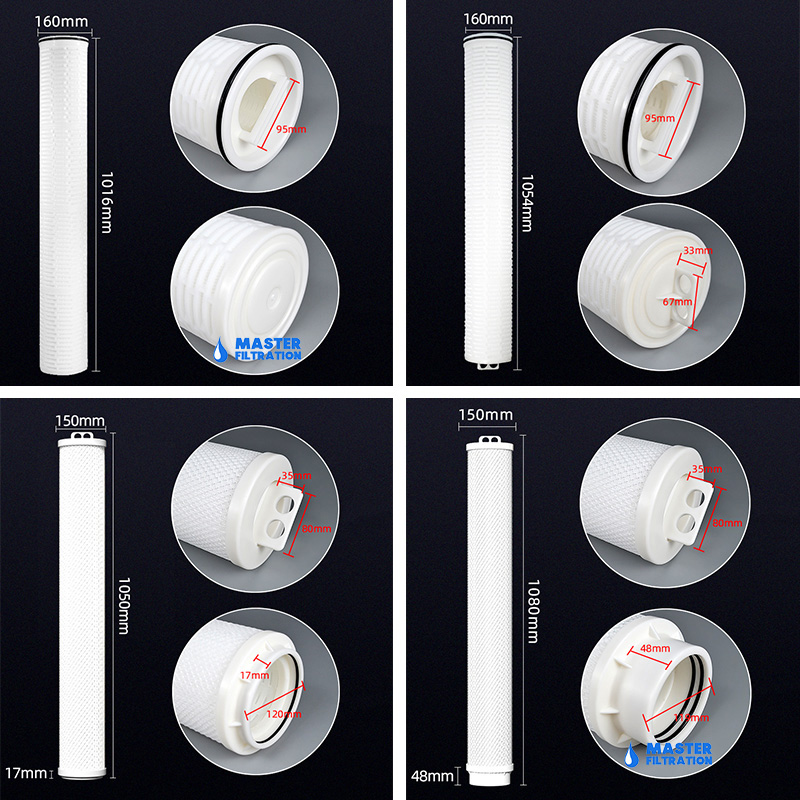

Cartridge Dimensions |
Length |
26"-660mm; 40"-1016mm; 60"- 1524mm; |
|
Outer Diameter |

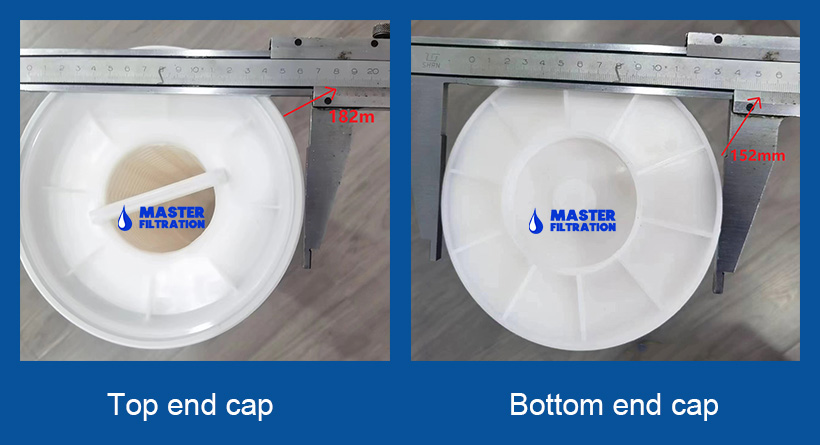

6.0 inches (152mm) |
|
|
Micron Rating: |
0.5 1 5 10 15 20 40 70 100 um (customized) |
|
|
Materials |
Filter Media: |
Polypropylene pp, fiber glass |
|
Support Layers: |
Polypropylene pp |
|
|
Inner core: |
Polypropylene |
|
|
Outer Cage, End caps: |
Polypropylene |
|
|
Seal Method: |
Thermal Bonded, No Adhesives |
|
|
O-rings/gaskets: |
Silicone, Nitrile, EPDM, Viton, Teflon, etc |
|
|
Operating conditions |
Normal Operating Temperature: |
≤ 60℃(140°F) |
|
Max.Operating Temperature.: |
82℃ (PP) ; 121℃ (Fiber glass) |
|
|
Max. Differential Pressure |
3.44bar@82℃ (PP); 3.44bar@121℃(Fiber glass) |
|
|
Recommended replacement pressure : |
2.4Bar @ 20℃ |
|
|
Remark |
We are factory and support customized specifications |
|
|
Model |
Length |
Removal Rating |
Seal material |
Core |
|
MFHO |
40=40" |
0.5= 0.5μm |
S=Silicone |
P=PP |
|
60=60" |
1=1μm |
E=EPDM |
|
|
|
|
3=3μm |
N=NBR |
|
|
|
|
5=5μm |
V=Viton |
|
|
|
|
10= 10μm |
C=Buna |
|
|
|
|
20= 20μm |
|
|
|
|
|
40= 40μm |
|
|
|
|
|
70= 70μm |
|
|
|
|
|
100= 100μm |
|
|
|
Water Treatment |
|
Process Water, RO Pre-filtration, Condensate Water, Potable Water System, Wastewater Treatment, Sea Water Desalination, Ballast Water Treatment. |
|
Industry |
|
LEDS, Wastewater, Pulp & Paper, Tank Venting, Fine Chemicals, Surface Finishing. |
|
Power Plant |
|
CVCS, RWCU, Spent Fuel Pool, Suppression Pool, Condensate Polishing, Steam Generator Blow Down, Stator Cooling Water Treatment, Liquid Radioactive Water Treatment. |
|
Petrochemical |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Food & Beverage |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Oil & Chemicals |
|
Painting, Inkjet Printers, Sovlent Filtration, Chemical Filtration, Oil & Gas Filtration, Inkjet Inks Filtration, Automotive Painting & Paint. |
|
Microelectronics |
|
LCD Cleaning, CMP Filtration, Flat Panel Film, Semiconductor Wastewater, Electronic Chemical Filtration, Typical Ultrapure Water System, Wafer Grinding/Cutting Wastewater. |
|
Pharmaceuticals |
|
Opthalmic Filtration, Pharmaceutical Water, Blood Plasma Product, Formulation LVP/SVP Filtration, Sterile Filtration & Bioburden Control, API's, Intermediates, Fermentation Broths, Precious Metal Catalyst Removal/Recovery. |
